The 19th century saw the invention of steam boilers. The steam power industry owes its existence to the birth of convection boilers, which was established by the co-inventors – George Babcock and Steven Wilcox.

From 1867 to the 2020's, the steam boiler has not only survived but thrived. It infused itself as a core part of many of our societal establishments. Steam technology is employed in several sectors including agriculture, baking, brewing, cement production, automotive industry, electricity generation and many more.

This guide sheds more light on the structure and functionality of steam boilers. The distinction between the types of steam boilers and its diverse applications.

How do Steam Boilers work?

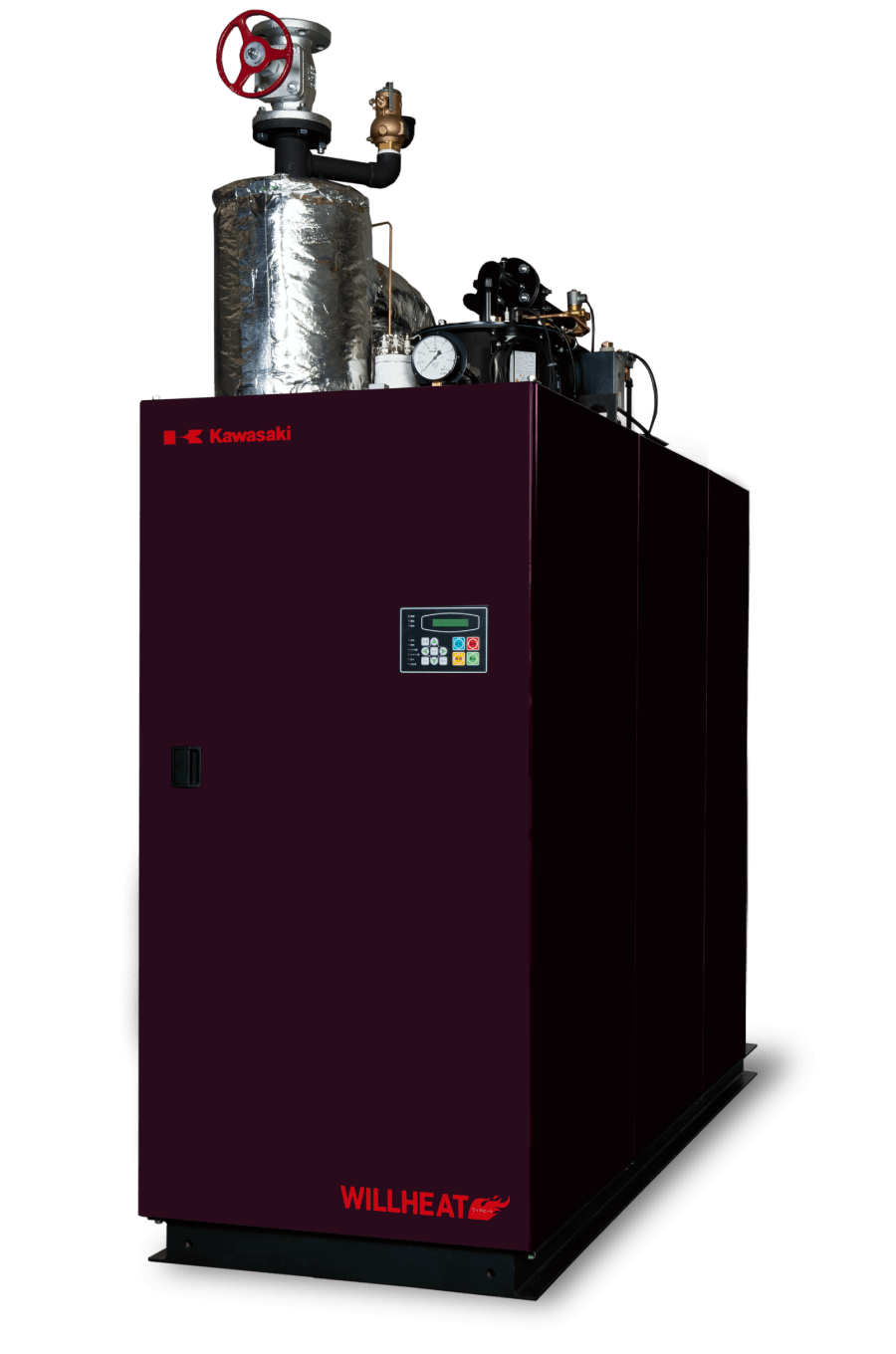

Steam Boiler

The mode of operation of the steam boiler is quite dependent on its use. However, the model is similar in all types of steam boilers.

The reason behind the use of steam is its high mobility rate and ability to carry high amounts of energy with it. Unlike water, steam moves faster and needs no external propelling force to move from A to B within a pipe.

Temperature, pressure, water, and fuel are the key components of the steaming process.  When combustion occurs in a furnace or combustion engine, heat cannot be transferred directly to the desired destination. Steam is a safer means of transferring energy compared to naked flame or hot metal. Therefore, it’s quite common to see steam as an energy carrier.

It’s similar to the ATP (Adenosine Triphosphate) found in the human energy cycle.

Instead of conveying glucose, an energy-rich substrate, it breaks down glucose into multiple molecules of ATP.  ATP is known as the energy currency, which transfers energy from cell to cell.
Like ATP, steam is easily transported and unstable. Sometimes, steam condenses back to water. And the water molecule is absorbed into the steam generator. Then, it is reconverted into steam.

The steam boiler or steam generator is different from a steam engine. The steam generator is only an integral part of the steam engine, which can be found in vehicles, trains, and power plants.

Boilers are designed with a furnace or firebox. The firebox is the part of the steam generator that is responsible for the burning of fuel or generation of heat energy. Under high pressure, the heat energy transforms water to steam. Impurities, pressure and temperature are factors that can affect the time it takes for water to turn into steam.

In the production of electricity, the heated steam is used to propel a turbine or alternator. Smaller steam generators are used in the sterilization of equipment. Pool temperature can also be maintained with steam power.

Types of steam boilers

Steam boilers are classified based on their level of technological advancement. In order to identify the right one for your business, a boiler survey has to be done.  Below are the types of Steam boilers:

Cylindrical fire-tube boiler

Fire-tube boiler

In 1725, encyclopedic works of Leopold’s “high pressure” engine model had already been made available to scholars and science enthusiasts.  Proponents like John Blakey and Oliver Evans were touted to have been influenced by Leopold’s works directly or indirectly.

Evans leaned towards the use of ‘strong steam” in non-condensing engines. The piston in this new model is driven mainly by steam power and released into the atmosphere afterwards. The advantages of the Evan’s model are in three-folds; it requires less steam, the size of the engine is reduced and steam engines could be used in smaller installations and transport.

This new model gave birth to a horizontal long wrought iron boiler with one fire tube on one end. The fire tube is situated at the fire grate and the gas flow follows an opposite channel and splits.
The divided channel passes through side flues and meets once more at the Columbian engine boiler.

Evans was able to install his works into mobile and stationary engines. To save space and weight, boilers meant for mobile engines had one exhaust channel linking the fire tube to the chimney.

The second to the last boiler in this category is the Cornish boiler.

It is stronger and more efficient than the ones that have been previously discussed. The Cornish boiler was modeled in 1812, thanks to Richard Trevithick. His model works under 40-50 psi. Early versions of the Cornish boiler were hemispherical while newer versions were cylindrical. His steam boilers had cylindrical water tanks with measurements of 8.2m (26.9 feet) length and 2.1m (6.9 feet) diameter.

Each return flue boiler was connected to a fire grate on one terminal of a unitary tube of 3 ft width which was positioned longitudinally in the tank. The Cornish boiler is used in semi-portable and locomotive engines.

The Lancashire boiler is an improved Cornish boiler. Instead of shutting down the whole boiler when cleaning a furnace, the Lancashire boiler had two furnaces in separate tubes placed together. So one furnace can keep serving the boiler while the other is been serviced. It is important to note that the Lancashire boiler is also a three-pass boiler.

Haycock and wagon top boilers

wagon top boilers

The first model was designed in 1712 by Newcomen while the second model was fashioned by John Smeaton. In 1775, the Smeaton model was modernized into a three-pass boiler by Boulton and Watt.

The Newcomen engine looked pretty much like a big brewer’s kettle installed at the bottom of a power cylinder. It worked by producing power from the vacuum created with condensing steam. For this to work, it must be conditioned at large volumes and low pressures around 1psi/6.9 KPa.

The downside of the first model was that it lost much energy because it was installed in brickwork which taps some heat energy. The furnace setup which involved the burning of huge amounts of coal underneath a pan covering, only provides a small heating area.

Thanks to John Smeaton, the Newcomen engine model was converted into an energy-saving model.

Instead of a slightly dished pan, the John Smeaton model utilized a gas system going through a flue to heat the water into steam. This new model increases the heating surface and lowers the amount of heat lost to brickworks and distant pan setups. A noteworthy idea used by Newton was to extend the route of the hot fluid by the use of a spiral labyrinth below the boiler. The 18th century industrialist intensely used the under-fired boilers. The name, haycock was attracted by the round shape of some of the sections,

The wagon top boiler was invented in 1775 by Boulton and Watt. This wagon top boiler is an extended model with a rectangle plan. The wagon top boiler is currently referred to as the three-pass boiler. This model contains an underside furnace and a gas route that goes through a central square-part tubular flue and terminates around the boiler region.


Multi-tube boilers

Unknown to him, Marc Seguin, a French engineer and inventor, began an industrial revolution when he formulated a two-pass boiler. The world had seen two-pass boilers before. However in Marc boilers, the second pass was constructed with a bulk of multiple tubes. This prototype alongside a natural induction tweak was adopted for marine use, for instance the Scotch marine boiler.

The Scotch marine boiler is a model of steam boiler used in powering ships.

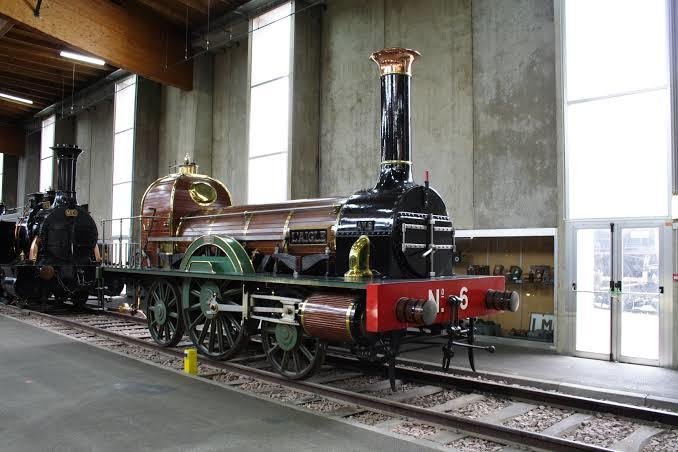

Before the Rainhill trials, a competition that was intended to prove George Stephenson’s ideas on locomotives in October 1829, George told Henry Booth a locomotive secret that would change the way steam boilers are modeled to date. Henry Booth was the then-treasurer of Manchester and Liverpool railway.

George's model is a one-tube pass that consists of two cells – a furnace with neighboring water spaces and a boiler barrel which has two rings (telescopic). These telescopic rings contained 25 copper tubes and the tube bulk was inserted into most of the water spaces, improving heat transfer.

The treasurer wasted no time and relayed the idea to his son; Robert who made sure all new Stephenson’s Rocket products used George's boiler. George won the trial, other constructors adopted the model and his model became the core structure of all fire-tube boilers.

Applications of steam boilers in 21st century

Many big cities, including the Empire city, New York, run on steam. According to Frank Cuomo, the G.M for steam distribution at Con Edison, 2.5 to 3 million New Yorkers are impacted by the steam system.

Whether you realize it or not, you’re benefiting from the steam boiler. Below are the various industrial applications of steam boilers in our day to day life:

In Cement production

Like other established industries, the cement industry is a highly competitive one. Investors and business owners are always seeking legal ways to increase profit without reducing the quality of the end-product or putting the lives of the end-consumers in danger.

One of the ways to reduce the cost of production is by utilizing every fuel used and reducing the loss of energy. A waste heat recovery model is the solution and a waste heat boiler is the tool needed to utilize the waste heat dissipated during cement production.

The waste energy can be recycled, used to dry raw materials and compliment the power supply. Waste heat boilers can help generate up to 20% to 30% electrical power needed in cement manufacturing sites.

In Agriculture

One of the several uses of steam in agriculture is the disinfection of tools. However, that’s just a tip of the ‘steamberg’. Steam is used in soil sterilization. Soil steam sterilization is a farming method that involves the sterilization of soil with steam. Steam sterilization can be carried out in greenhouses or open fields.

The process is effective in the partial killing of weeds, bacteria, viruses and fungi. The product of killing soil microbes is the release of cellular proteins, which increases the nutrients in the soil considerably. The process is regarded as partial disinfection because spore-forming bacteria are heat-resistant and can survive or reactivate once the soil is back to its cold state.

Soil steaming is a perfect solution for soil fatigue. Revitalization, improved growth and disinfection are the benefits of soil steaming. The 21st century method of disinfecting compost and sick soil is soil steaming. It is preferred to the use of bromomethane. According to the Montreal Protocol, “steam is effective in the elimination of soil pathogens that causes protein coagulation or enzyme inactivation”

In HVAC systems

The use of steam boilers in HVAC systems include water heating, sanitation, cooking, waste energy utilization, and central heating. Fire-tube boilers are used to warm the air which is transferred to the rooms of a house or warehouse. They are fixed with ductworks.

In Power Plants

The process of using high-pressured steam to generate electrical power is known as the Rankine cycle. The process was designed by William J.M Rankine, a Scottish engineer, in 1859. As we’ve mentioned earlier, power plants rely on steam to maximize the energy coming from carbon-based fuel or nuclear reactors.

Final Thoughts on Steam Boilers

Though the steam boiler is crucial to civilization as we know it, its risks could be fatal, if mismanaged.

Most big cities have steam pipes installed beneath the city. These pipes operate under high pressure, but they are built to endure hot temperatures and high pressure. Steam pipe explosion is not an event that occurs very often, however, it can be very devastating. A single burst can result in the loss of lives and evacuation of an area.

While most steam accidents are not caused by bad or faulty pipes, steam companies are required to check the state of their pipes regularly and steam generation components through advanced x-ray and ultrasonic tools.

Any steam company that fails to conduct regular inspections and take necessary precautions, risks losing its license to operate within the nation. If the carelessness on the part of the manufacturer results in societal damage, the company would most likely be sued and heavily fined.

To avoid early damage of pipes, it’s better to purchase quality steam boilers, components and pipes for your company, or home, including, pools and warehouses. Understanding the design and function of your steam boiler is crucial to efficient and safe operation. When you have an issue with a steam boiler, it's best to seek professional advice and follow proper protocols in both it's operation and maintenance schedules.
